Automatic Water Heater Tank Welding Line

This production line is a highly efficient and automated professional line specifically designed for welding water heater tanks. It integrates various advanced welding equipment and processes, covering the entire process from tank rolling to welding all seams and accessories, ensuring the structural strength, sealing performance, and production consistency of the water heater products. The line has a rational layout and a high degree of automation, making it a core component of modern water heater manufacturing.

1.  Cylindrical Rolling Forming

• Core Equipment: Cylindrical Rolling Machine

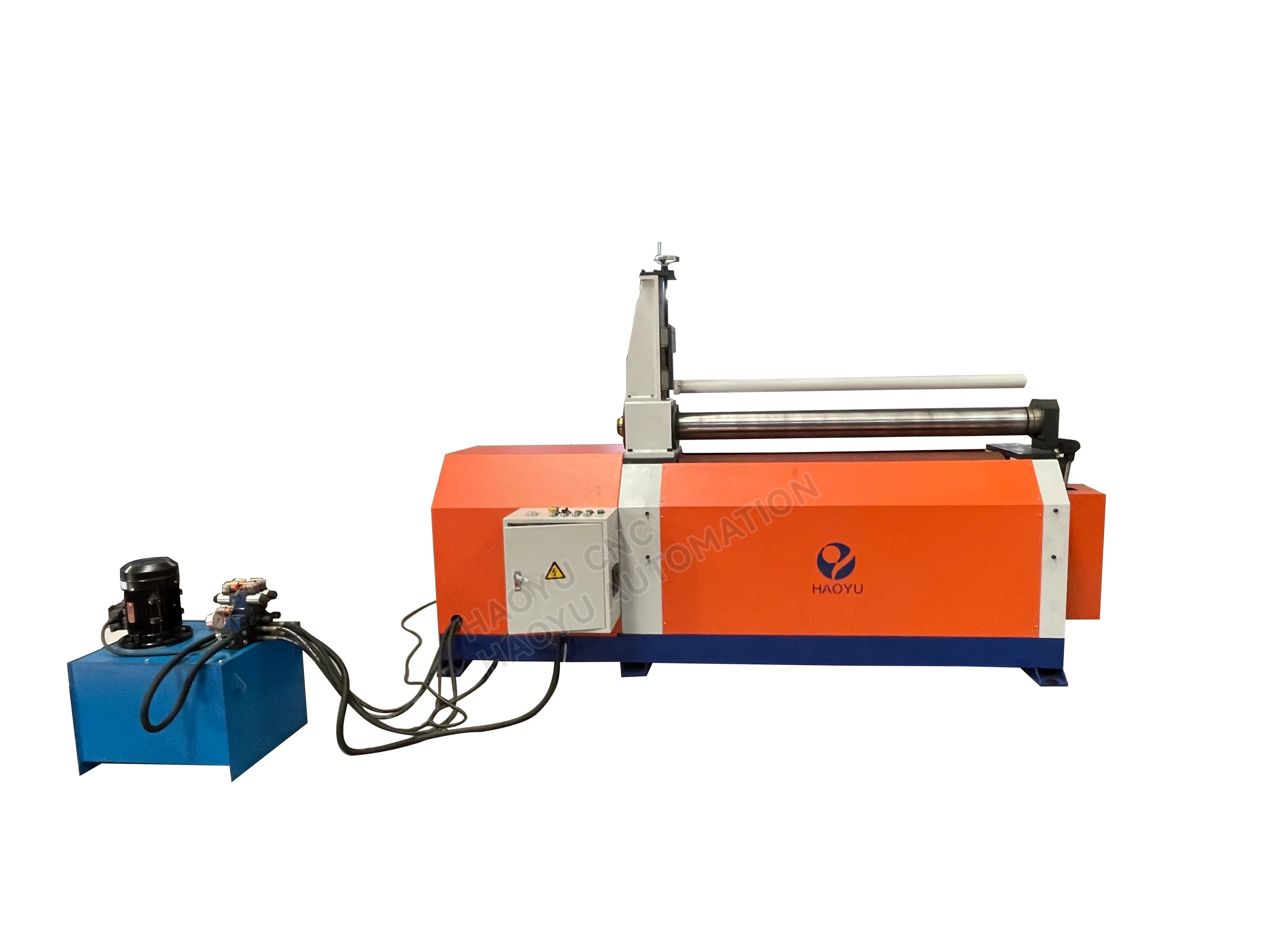

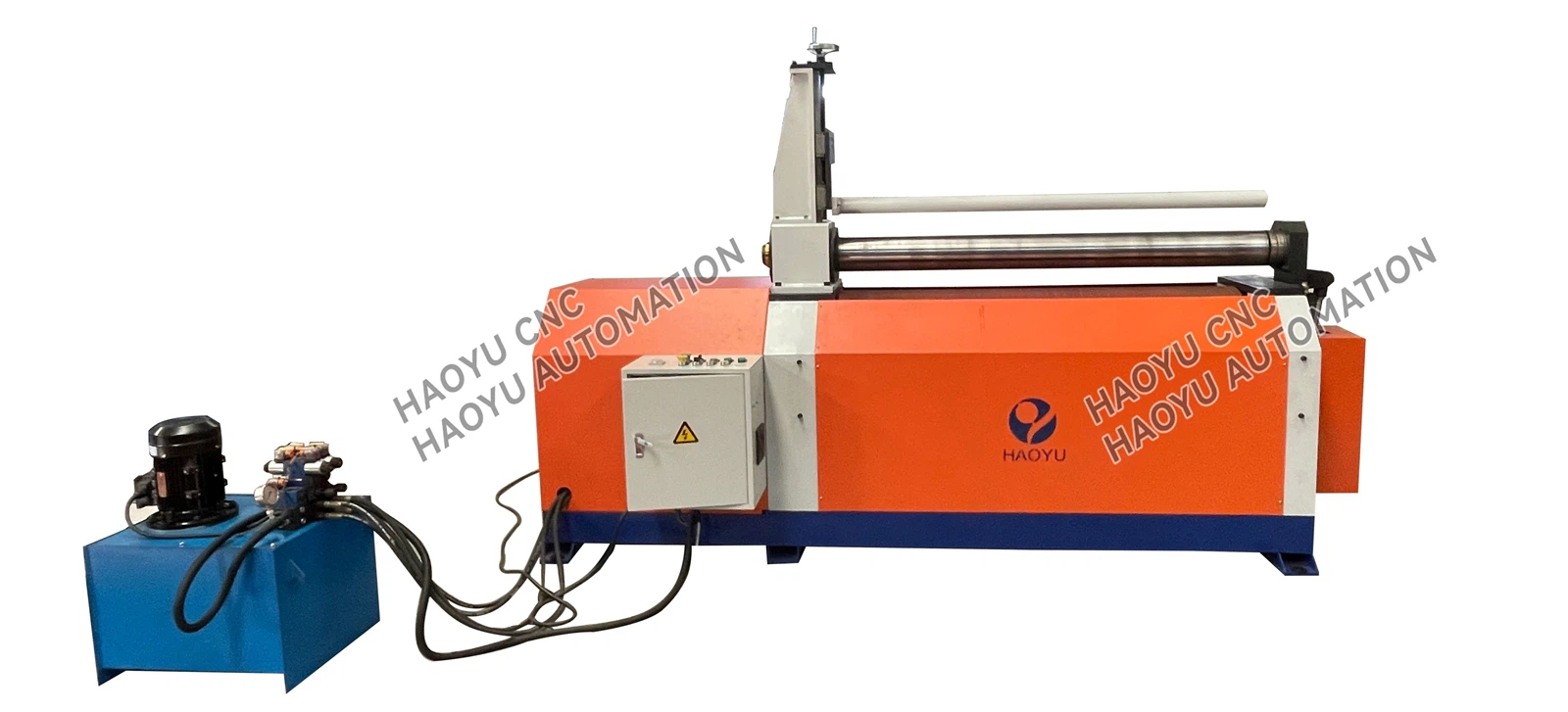

Process Description: Cut rectangular steel plates are automatically rolled into cylindrical shapes of a specified diameter using a high-precision cylindrical rolling machine. This ensures the roundness of the cylinder and the quality of the butt joints, laying the foundation for subsequent welding.

2.  Longitudinal Seam Welding of the Cylindrical Shell

• Core Equipment: Straight Seam Welding Machine

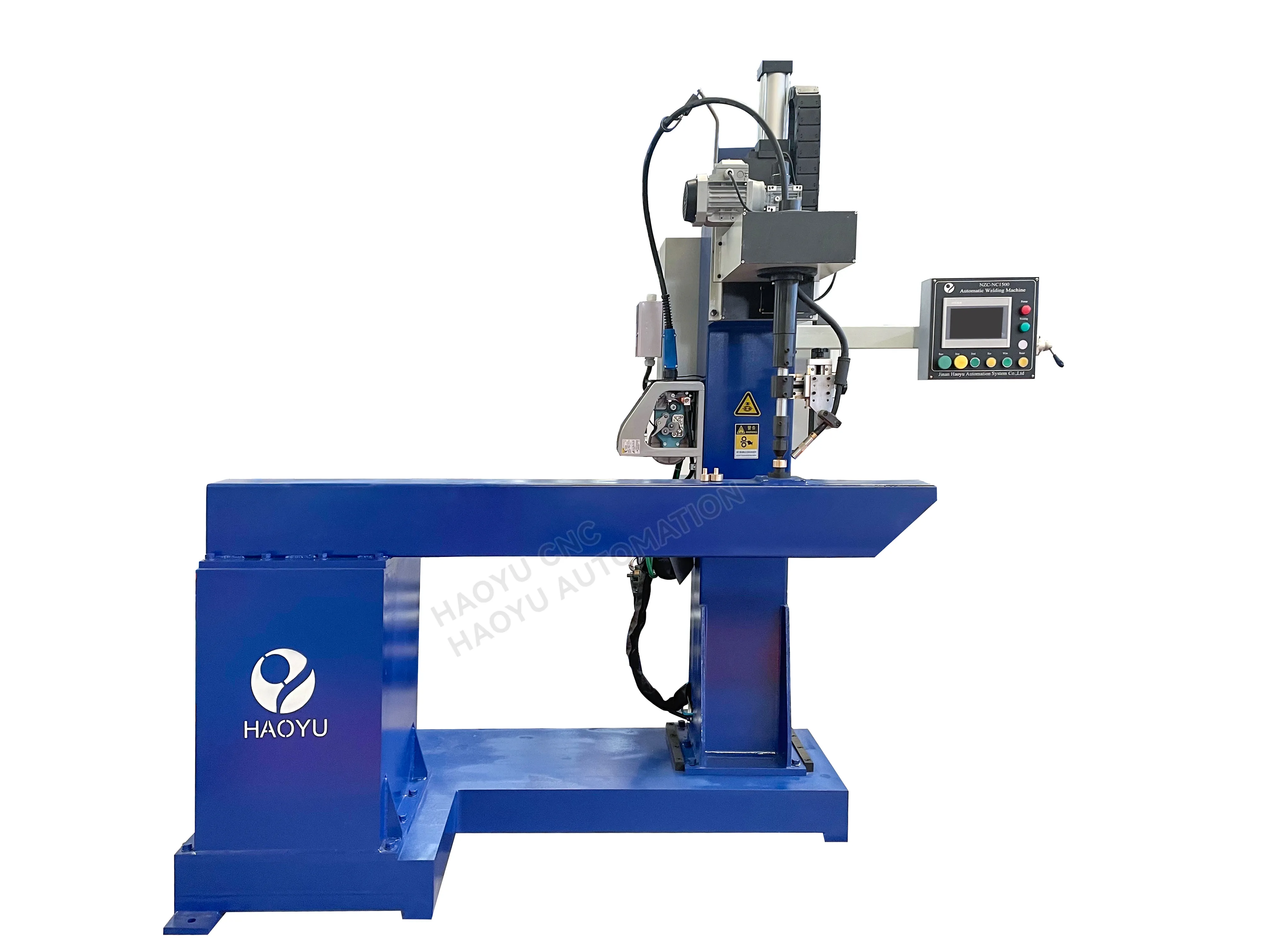

Process Description: This process involves the automated welding of the longitudinal butt joints of the rolled cylindrical shell. Highly efficient welding methods such as gas shielded welding are typically employed to ensure the longitudinal seam is formed in one pass, resulting in a smooth, strong, and defect-free weld. This is a crucial step in ensuring the pressure-bearing capacity of the cylindrical shell.

3.  Circumferential Seam Welding

• Core Equipment: Water Heater Tank End Cover Ring Seam Welding Machine, Water Heater Tank Middle Pipe Circumferential Seam Welding Machine

Process Description: This is the core step in connecting the cylinder to the end caps.

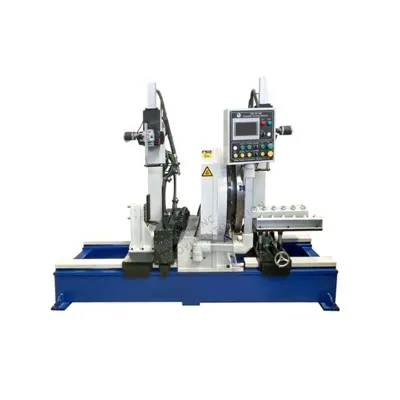

Double Circumferential Seam Welding Machine: Can simultaneously weld the circumferential seams at both ends of the cylinder, offering extremely high efficiency. Suitable for mass production, it perfectly ensures the symmetry and quality consistency of the welds at both ends.

Single Circumferential Seam Welding Machine: Used for welding the circumferential seam at only one end of the cylinder. It offers greater flexibility and is suitable for multi-variety, small-batch production models, or can be used as a supplement to the double circumferential seam welding machine.

4.  Welding of Accessories

• Core Equipment: Water heater nozzle welding machine, cylinder body gas nozzle welding machine

Process Description: Water heater nozzle welding machine: Specifically used for welding main interfaces such as inlet and outlet pipes and drain outlets (commonly known as "nozzles"), ensuring accurate positioning, reliable welding, and leak-proof operation.

Cylinder body gas nozzle welding machine: Specifically used for welding small connecting seats (commonly known as "gas nozzles") for installing thermostats, pressure relief valves, and other devices, also requiring high-precision positioning and sealing welding.

• High Degree of Specialization and Integration: The entire production line is custom-designed to meet the specific characteristics of water heater products, with seamless integration of each process to form a complete production system.
• Superior Welding Quality: Utilizing automated welding equipment effectively avoids the instability of manual welding, resulting in aesthetically pleasing, high-strength, and well-sealed welds, significantly improving product safety and lifespan.
• Excellent Production Efficiency: Continuous automated operations from rolling to accessory welding significantly reduce workpiece turnaround and clamping time, greatly improving overall production efficiency and meeting the demands of large-scale production.
• Stable and Reliable Product Consistency: Automated production ensures a high degree of consistency in welding quality and dimensional accuracy for every water heater tank, providing strong assurance for product quality stability.
• Flexible Configuration Options: The production line can be flexibly configured with single-ring or double-ring welding machines based on the customer's specific product specifications, capacity requirements, and budget, achieving the best cost-performance ratio.

• Water Heater Tank End Cover Ring Seam Welding Machine

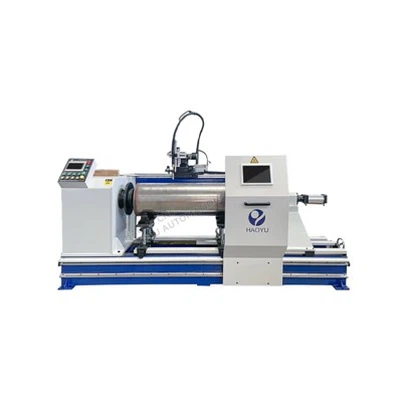

• Water Heater Tank Middle Pipe Circumferential Seam Welding Machine

• Water heater tank nozzle welding machine
