Welding Equipment For The Production Of Air Storage Tank

welding equipment for the production of air storage tank

I.Design Task

1.Perform the automatic welding for the circular seams on the cylinder tank.

2.Ensure the location dimensions of the workpiece uniform, positioning automatically, convenient and reliable to use, welding quality meets the requirements, clamping fast and convenient.

II.Basic Design

1.Welding torch is fixed while workpiece rotating. Welding position is horizontal. The workpiece is clamped tightly by jig at two ends and rotates.

2.Two welding torches and two power sources work simultaneously to improve work efficiency.

3.Torch, spindle box and tailstock can be adjusted longitudinally to fit various kinds of welding.

4.Japan Omron PLC is adopted to control the machine to run and speed is adjusted by AC servo, which can improve the reliability of the equipment.

5.Adopts end face positioning and pneumatically clamping mode.

6.Adopts human-machine interface to alter the parameters. The welding time and weld length can be set via this interface. The alteration of the parameters can be input through the touch button conveniently and timely. Parameters can be stored and called.

III.Technical Parameters

IV.Equipment Structure

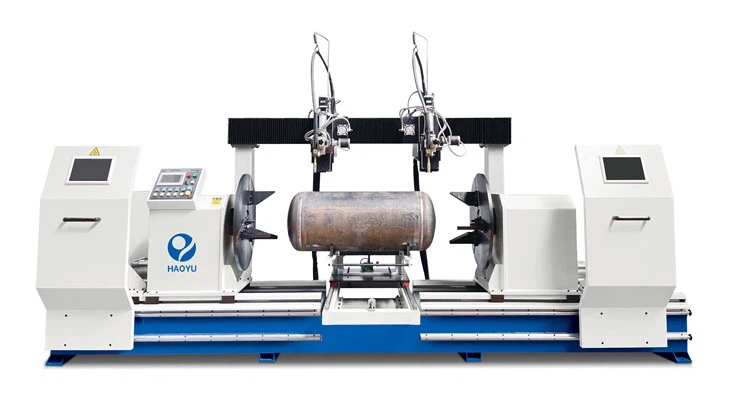

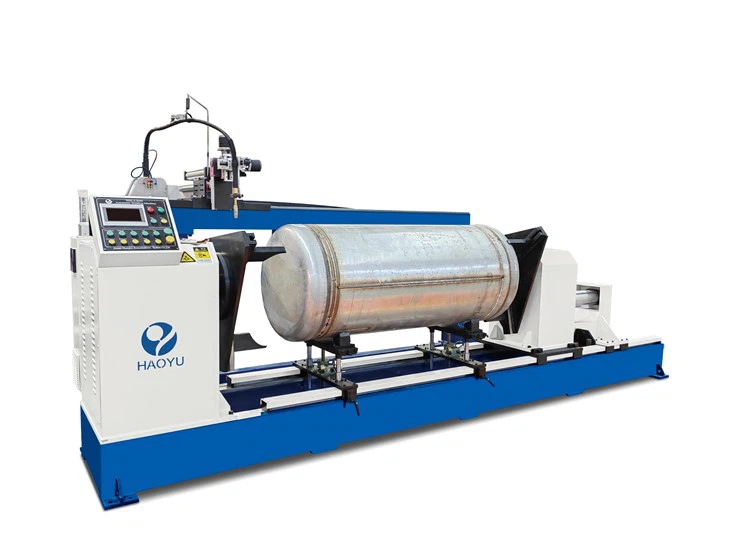

This machine is made up of mainframe, spindle box and its pneumatic feeding mechanism, tailstock and its pneumatic feeding mechanism, workpiece supporting mechanism, welding torch feeding and adjusting mechanism, electrical control system, pneumatic system and welding power source.

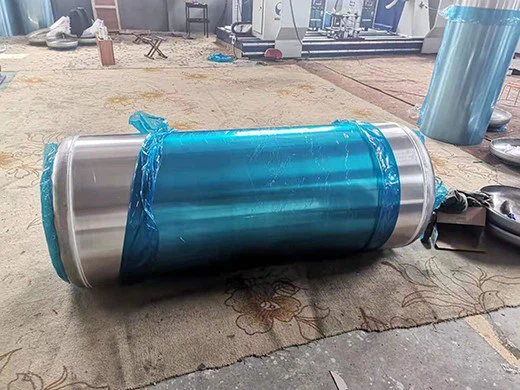

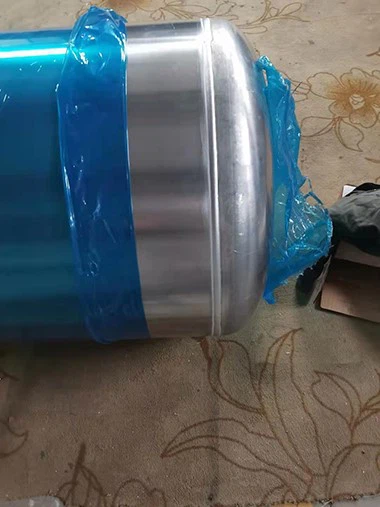

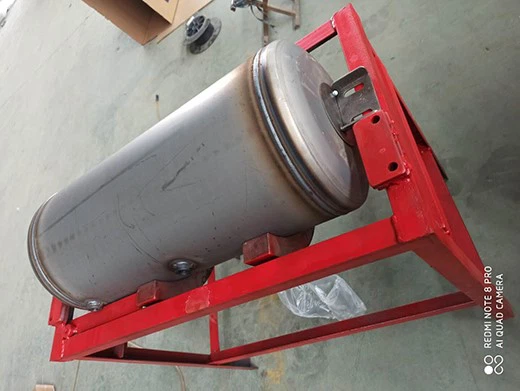

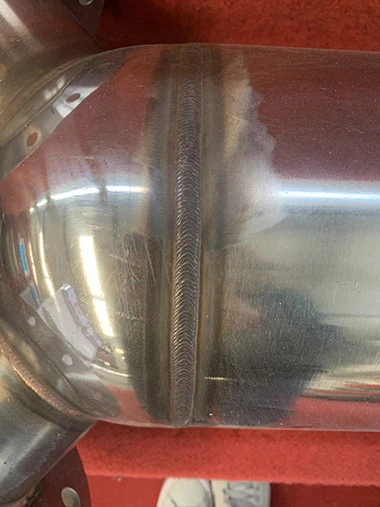

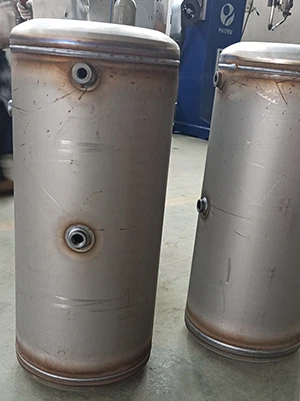

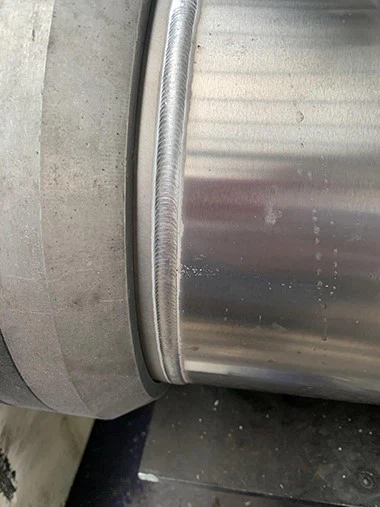

V.Detailed images

VI.Vedio for your reference
